Product specification
6SL3255-0VA00-4BA1

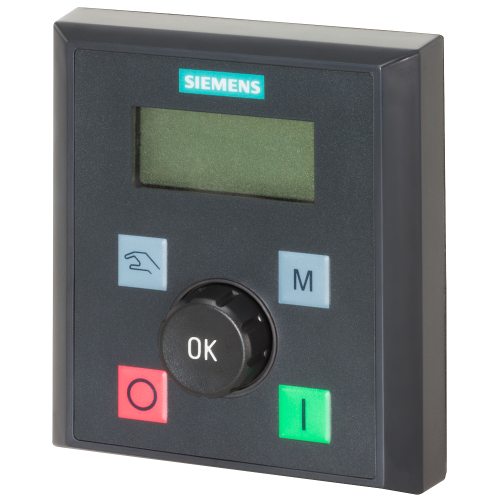

SINAMICS V20 external basic operator panel for remote operation.
Dimensions & specifications
Accessories are matched to individual parts. A shared manufacturer or frame size alone does not establish compatibility.
Accessories & related parts
Part numbers & documents
- 6SL3255-0VA00-4BA1 SINAMICS V20 external basic operator panel for remote operation.
- 6SL3255-0VA00-2AA1 SINAMICS V20 BOP interface to connect the external operator panel.
- 6SL3255-0VA00-5AA0 SINAMICS V20 Smart Access module for wireless commissioning, parameter setting and diagnostics.
- 6SL3255-0VE00-0UA1 SINAMICS V20 Parameter Loader for backing up and transferring drive parameters.
- 6SL3256-0VE00-6AA0 SINAMICS V20 I/O extension module, adding 2 digital inputs and 2 relay outputs.
- 6SL3266-1AR00-0VA0 SINAMICS V20 shield connection and strain-relief kit for FSAA / FSAB.
- 6SL3266-1AU00-0VA0 SINAMICS V20 shield connection and strain-relief kit for FSAC.
- 6SL3266-1AV00-0VA0 SINAMICS V20 shield connection and strain-relief kit for FSAD.
- 6SL3266-1AA00-0VA0 SINAMICS V20 shield connection and strain-relief kit for FSA.
- 6SL3266-1AB00-0VA0 SINAMICS V20 shield connection and strain-relief kit for FSB.
- 6SL3266-1AC00-0VA0 SINAMICS V20 shield connection and strain-relief kit for FSC.
- 6SL3266-1AD00-0VA0 SINAMICS V20 shield connection and strain-relief kit for FSD.
- 6SL3266-1AE00-0VA0 SINAMICS V20 shield connection and strain-relief kit for FSE.
- 6SL3202-0AE16-1CA0 Output reactor listed by Siemens for matching SINAMICS V20 and G120C converters.
- 6SL3202-0AE18-8CA0 Output reactor listed by Siemens for matching SINAMICS V20 and G120C converters.
- 6SL3202-0AE21-8CA0 Output reactor listed by Siemens for matching SINAMICS V20 and G120C converters.
- 6SL3202-0AE23-8CA0 Output reactor listed by Siemens for matching SINAMICS V20 and G120C converters.
- 6SE6400-3TC03-8DD0 Output reactor listed by Siemens for matching SINAMICS V20 converters.
- 6SE6400-3TC05-4DD0 Output reactor listed by Siemens for matching SINAMICS V20 converters.
- 6SL3201-2AD20-8VA0 SINAMICS V20 external braking module for 230 V drives, frames FSAA–FSAD.
- 6SE6400-4BC05-0AA0 Braking resistor for matched SINAMICS V20 converters, 180 Ω, 50 W continuous power.
- 6SL3201-0BE14-3AA0 Braking resistor for matched SINAMICS V20 and G120C converters, 370 Ω, 75 W continuous power.
- 6SL3201-0BE21-0AA0 Braking resistor for matched SINAMICS V20 and G120C converters, 140 Ω, 200 W continuous power.
- 6SL3201-0BE21-8AA0 Braking resistor for matched SINAMICS V20 and G120C converters, 75 Ω, 375 W continuous power.
- 6SL3201-0BE23-8AA0 Braking resistor for matched SINAMICS V20 and G120C converters, 30 Ω, 925 W continuous power.
- 6SE6400-4BD21-2DA0 Braking resistor for matched SINAMICS V20 converters, 27 Ω, 1,200 W continuous power.
- 6SL3255-0AA00-4CA1 BOP-2 basic operator panel for SINAMICS G120C.
- 6SL3255-0AA00-4JA2 IOP-2 intelligent operator panel for SINAMICS G120C.
- 6SL3255-0AA00-4HA1 IOP-2 handheld commissioning set with operator panel, handheld housing, rechargeable batteries, charger, RS232 cable and USB cable.
- 6SL3255-0AA00-5AA0 SINAMICS G120 Smart Access wireless commissioning and diagnostic module.
- 6SL3255-0AA00-2CA0 SINAMICS PC converter connection kit 2, USB cable, 3 m.
- 6SL3256-0AP00-0JA0 Door mounting kit for BOP-2 or IOP-2; includes seal, fixing accessories and 5 m connecting cable. Operator panel ordered separately.
- 6SL3054-4AG00-2AA0 SINAMICS 512 MB memory card without firmware for parameter backup and transfer.
- 6SL3203-0CE13-2AA0 Line reactor for matched SINAMICS G120C drives, 4 A.
- 6SL3203-0CE21-0AA0 Line reactor for matched SINAMICS G120C drives, 11.3 A.
- 6SL3203-0CE21-8AA0 Line reactor for matched SINAMICS G120C drives, 22.3 A.
- 6SL3203-0CE23-8AA0 Line reactor for matched SINAMICS G120C drives, 47 A.
- 6SL3266-1ER00-0KA0 Replacement shield connection kit for SINAMICS G120C FSAA. A shield kit is already supplied with a new drive.
- 6SL3266-1EA00-0KA0 Replacement shield connection kit for SINAMICS G120C FSA. A shield kit is already supplied with a new drive.
- 6SL3266-1EB00-0KA0 Replacement shield connection kit for SINAMICS G120C FSB. A shield kit is already supplied with a new drive.
- 6SL3266-1EC00-0KA0 Replacement shield connection kit for SINAMICS G120C FSC. A shield kit is already supplied with a new drive.
- 6SL3262-1AD01-0DA0 Additional FSD shield connection kit for EMC-compatible braking-resistor cable connection.
- 6SL3200-0ST05-0AA0 Replacement line, motor and braking-resistor connector set for SINAMICS G120C FSAA / FSA.
- 6SL3200-0ST06-0AA0 Replacement line, motor and braking-resistor connector set for SINAMICS G120C FSB.
- 6SL3200-0ST07-0AA0 Replacement line, motor and braking-resistor connector set for SINAMICS G120C FSC.
- 6SE6400-3TC07-5ED0 Output reactor for G120C FSD 22–37 kW low-overload drives. Siemens specifies two reactors connected in series for this application.
